ACT Mod Twin 225 Heavy Duty Rigid Race Twin Disc Clutch Kit 2006-2025 WRX / 2005-2012 Legacy GT / 2006-2008 Forester XT

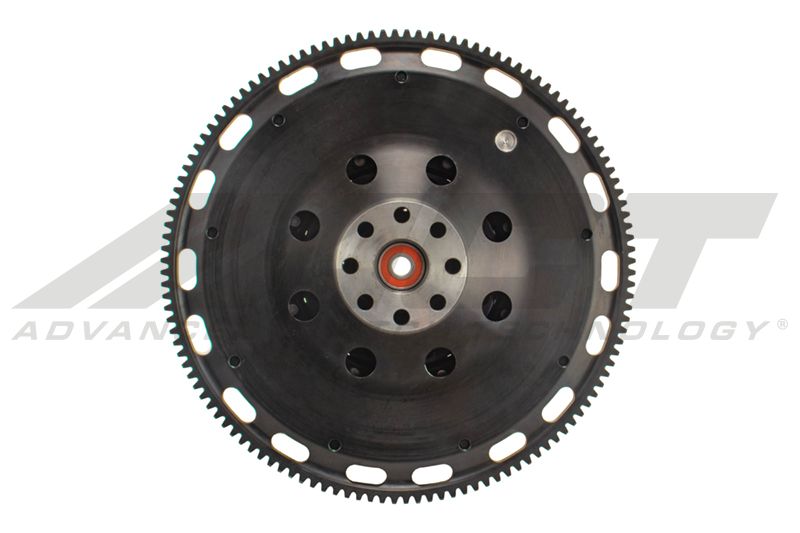

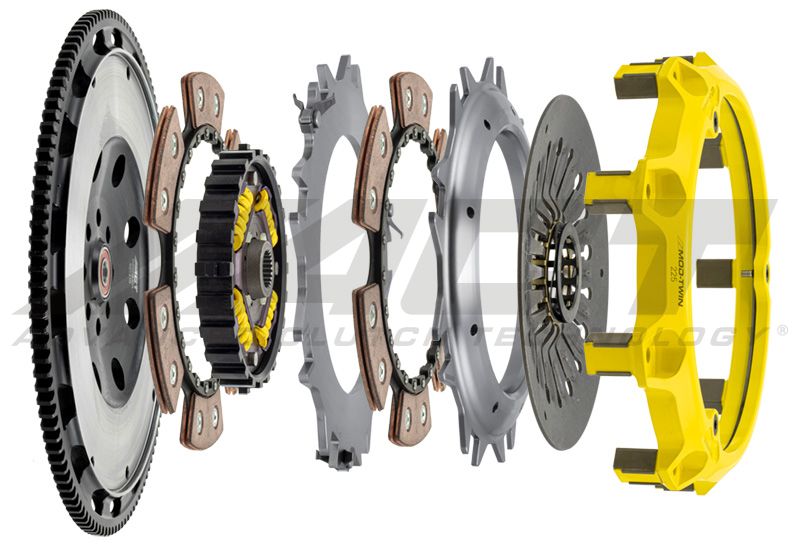

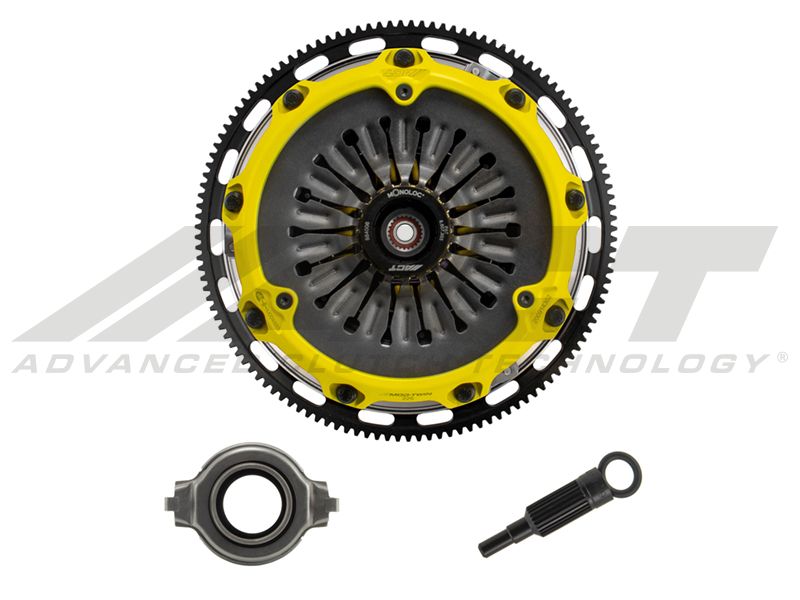

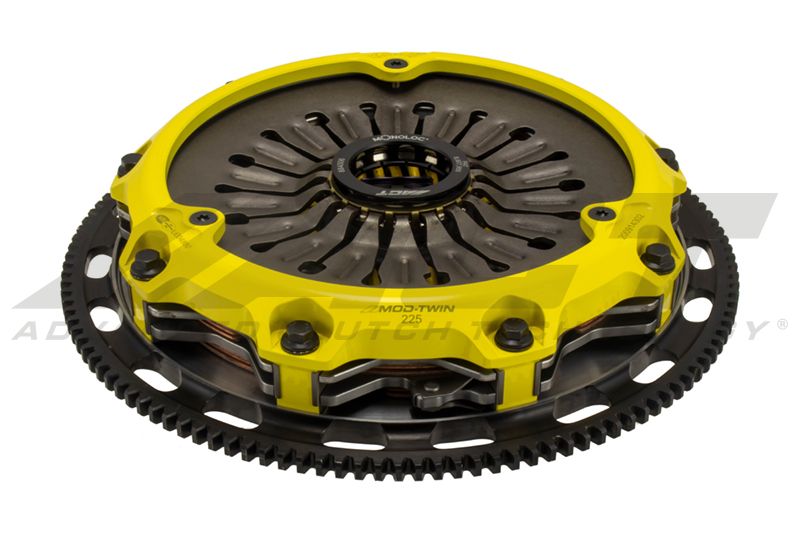

The Mod-Twin 225 HD Rigid Race Kit is engineered for high-powered AWD applications requiring aggressive launches and rapid shifting. This modular twin-disc design combines twice the ceramic friction surfaces with a solid Mono-Drive hub for maximum durability. The diaphragm spring undergoes a four-stage heat treatment for consistent, light pedal feel. Puck-style ceramic friction plates provide superior heat capacity, high friction coefficient, and long life. Torque is uniformly transferred through the chrome-moly Mono-Drive hub, heat treated for strength and extended input shaft life. The lightweight, rigid design ensures quick, precise shifts and trouble-free service. Includes CNC-machined, dynamically balanced flywheel, pressure plate, diaphragm spring, friction plates, rigid Mono-Drive hub, floater, Monoloc collar, release bearing, alignment tool, and pilot bearing (if required). Most components are rebuildable and available separately.

Specs

• Torque Capacity: 800 ft/lbs (154% over OE)
• Disc Material: Ceramic
• Disc Diameter: 8.8 in / 225 mm
• Input Shaft Diameter: 1 in
• Pressure Plate Type: Heavy Duty
• Product Weight: 26.5 lbs
• SFI: 1.2

Performance Characteristics

• Feel: Predictable aggressive engagement, light pedal effort, quick shifting, possible start-off judder with mild to moderate transmission gear noise
• Life: Forged aluminum cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure long-lasting performance under extreme conditions
• Quality: Maximum performance and high heat tolerance through robust design, strategic features, select materials, and precise tolerances
• Recommended Use: Drag, Road, or Rally Racing
• ACT Difference: Ultra-durable, customer-serviceable twin disc clutch, 100% clamp load tested, dynamically balanced, and SFI certified
