ACT Mod-Twin 225 Extreme Duty Sprung Street Twin Disk Clutch Kit 2006-2025 WRX / 2005-2012 Legacy GT / 2006-2008 Forester XT / 2005-2009 Outback XT

The ACT Mod-Twin 225 XT Sprung Street Kit is engineered for high-powered AWD street cars, delivering uncompromised pedal feel, smooth engagement, and extreme torque capacity. By combining twice the organic friction surfaces with an ultra-durable spring-center Mono-Drive hub, this fully modular design maximizes performance and drivetrain longevity.

Each diaphragm spring undergoes a four-stage heat treating process to ensure a consistent, light pedal feel, while steel-backed friction plates with premium organic materials provide stable friction, high heat capacity, and long clutch life. Torque is uniformly transferred to the Mono-Drive hub, reducing driveline shock and extending input shaft life.

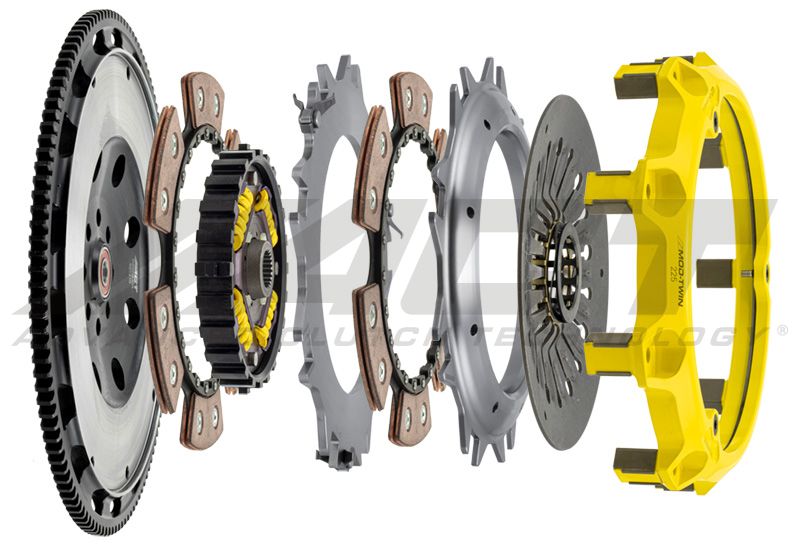

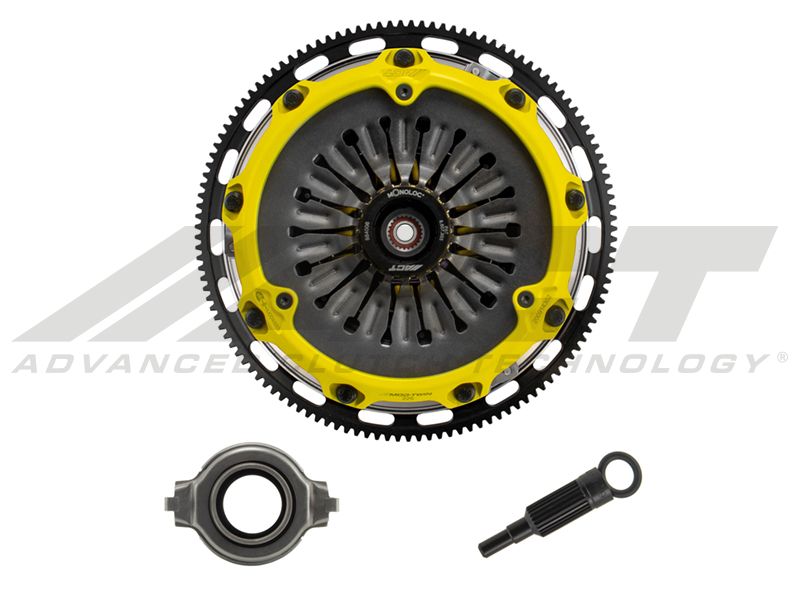

Included:

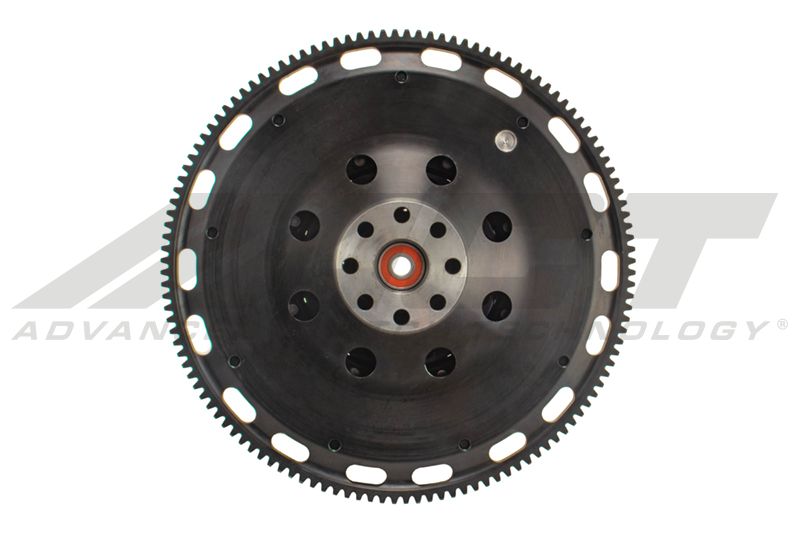

• CNC-machined, dynamically balanced flywheel
• Pressure plate cover & diaphragm spring
• Puck-style ceramic friction plates
• Sprung Mono-Drive hub assembly
• Floater and patented Monoloc Collar
• Release bearing, alignment tool, and pilot bearing

Specs:

• Torque Capacity: 710 ft-lbs (126% over OEM)
• Disc Material: Organic
• Disc Diameter: 8.8" / 225 mm
• Input Shaft Diameter: 1"
• Pressure Plate Type: Xtreme
• Item Weight: 27.4 lbs

Performance Characteristics:

• Feel: Soft, progressive engagement with light pedal effort and smooth shifting, minimal transmission noise
• Durability: Forged aluminum cover, Mono-Drive hub, premium friction materials, and hardened wear points ensure long life under extreme conditions
• Quality: Robust design, precise tolerances, and high heat tolerance for maximum performance
• Recommended Use: Street or Street/Strip
