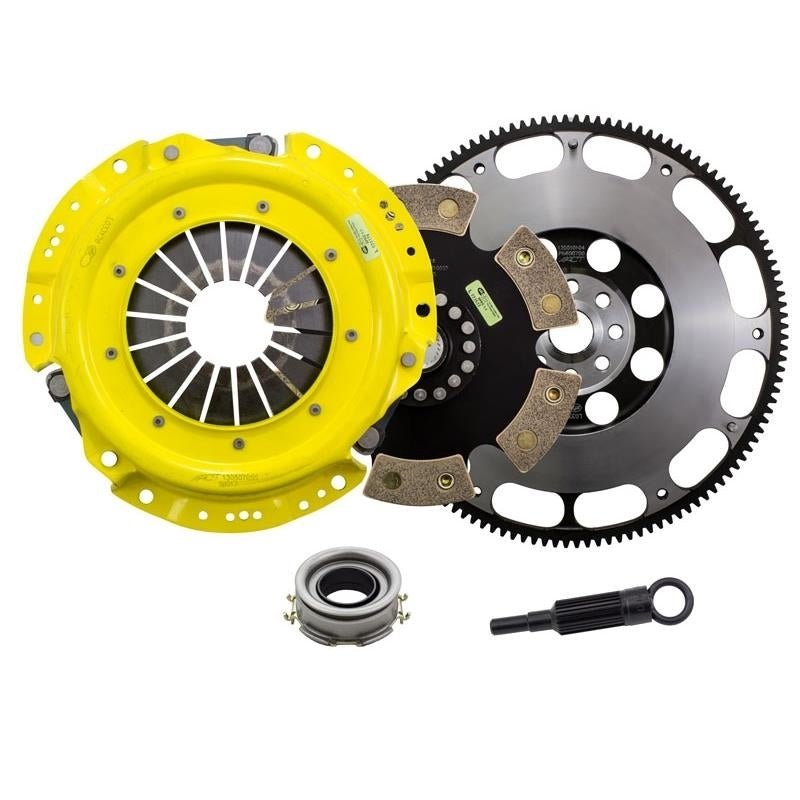

ACT Heavy Duty Race Rigid 6 Pad Clutch Kit w/ Prolite Flywheel 2013-2021 BRZ

The SB8-HDR6 kit features ACT’s Heavy Duty pressure plate paired with a 6-pad rigid race disc for maximum race performance. The diaphragm-style pressure plate increases clamp load, reduces deflection, and maximizes clutch life. The 6-pad rigid disc uses high-quality ceramic friction material with a heat-treated chrome-moly hub for strength and durability. Its lightweight, rigid design enables quicker shifts and smooth, trouble-free operation. The 6-pad rigid disc is recommended for larger clutch sizes to better absorb heat, delivering harsher engagement for aggressive racing.

Specs

• Torque Capacity: 349 ft/lbs (107% over OE)
• Disc Material: Ceramic
• Disc Diameter: 8.8 in / 224 mm
• Input Shaft Diameter: 1 in
• Pressure Plate Type: Heavy Duty
• Product Weight: 23.9 lbs
• Flywheel Type: Prolite

Performance Characteristics

• Feel: Light to moderate pedal effort, aggressive engagement, increased gear rattle
• Life: Moderate friction life, extended by ACT’s exclusive diaphragm design; rigid design may increase spline wear
• Quality: Precisely assembled, accurately balanced, with ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: Race use only
• ACT Difference: 100% clamp load tested, dynamically balanced for smooth high RPM reliability
