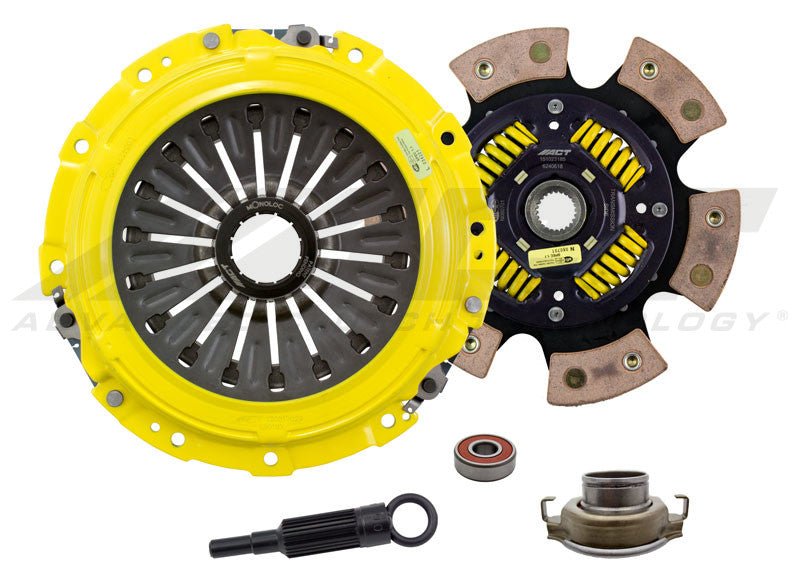

ACT Extreme Race Sprung 6 Pad Clutch 2004-2021 STI / 2007-2009 Legacy GT Spec B

The SB10-XTG6 ACT Extreme Race Sprung 6 Pad Clutch Kit is designed for high-power drivers demanding aggressive engagement and long-lasting durability. It features an Xtreme pressure plate with an exclusive diaphragm design that increases clamp load, reduces deflection, and maximizes clutch life. The 6-pad spring-centered ceramic disc dampens torsional vibrations and maintains reliability under harsh driving conditions. Monoloc—a one-piece, chrome-moly steel retaining system—ensures uniform loading on the bearing and pressure plate, improving alignment and release mechanism longevity.

Specs

• Torque Capacity: 766 ft/lbs (115% over OE)
• Disc Material: Ceramic
• Clutch Disc Diameter: 9.4 in / 240 mm
• Input Shaft Diameter: 1 in
• Pressure Plate Type: Xtreme
• Product Weight: 18.5 lbs

Performance Characteristics

• Feel: Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle, confidence during hard shifts
• Life: Moderate friction life extended by ACT’s diaphragm design, major improvement in release mechanism durability
• Quality: Precisely engineered, balanced, with high-heat tolerance ceramic materials and reinforced release mechanism
• Recommended Use: High horsepower street or race use
• ACT Difference: 100% clamp load tested and dynamically balanced, includes ACT’s patented Monoloc for superior reliability
