COBB 4 Bar Map Sensor Kit 2008-2014 WRX / 2005-2009 Legacy GT / 2009-2013 Forester XT

Most Subarus are equipped with either a 2.5 or 3 bar MAP sensor from the factory which allows accurate reading up to either 21.5psi or 28.8psi (respectively). For vehicles targeting boost values higher than that, an upgraded sensor is required for accurate measurement and control.

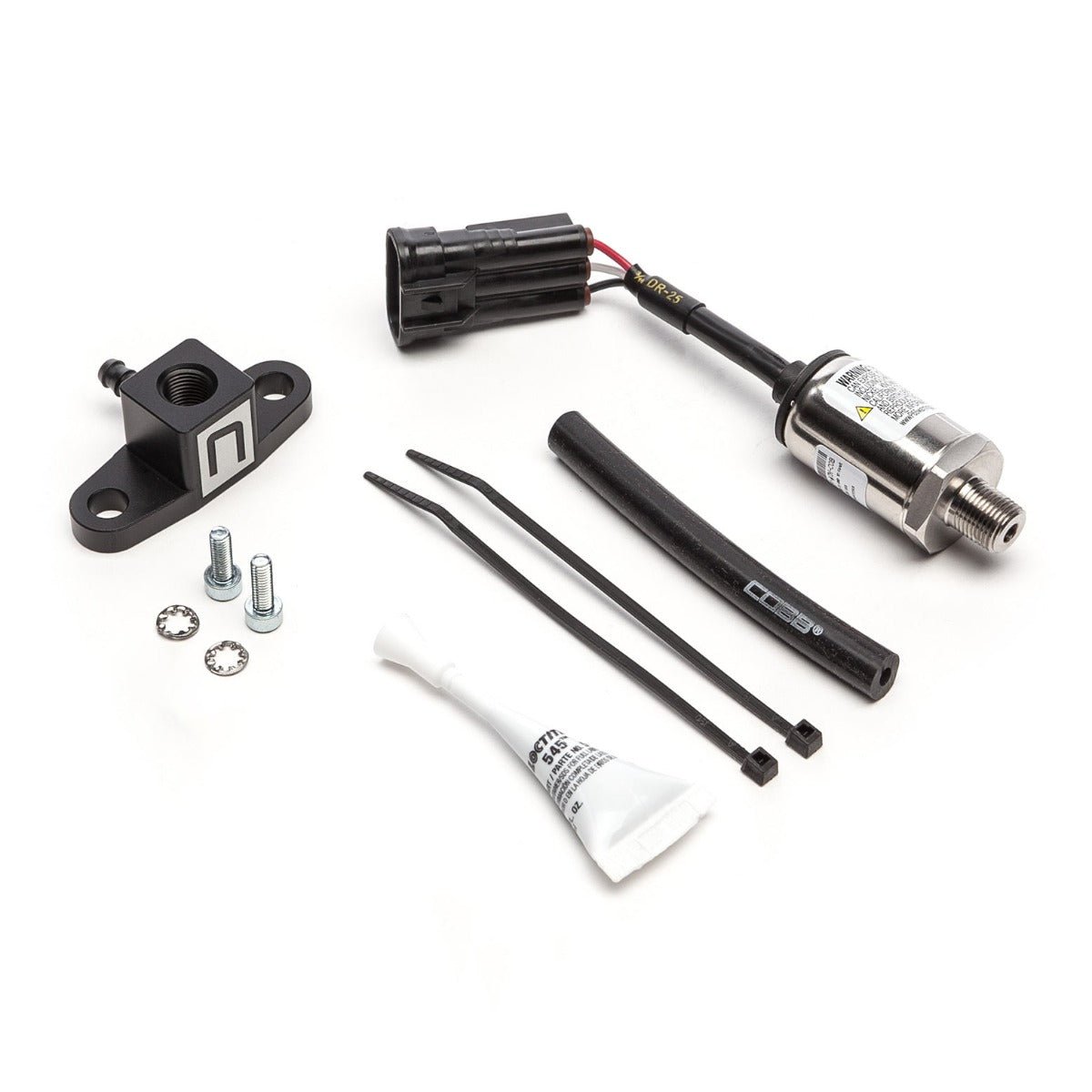

This kit consists of both a billet aluminum adapter and the pre-terminated 4 Bar sensor. The billet aluminum adapter is anodized black with a laser-etched "C" logo. 1/8" NPT threads allow for simple, leak-free installation of the pressure sensor. The barb fitting and included vacuum line allow for direct replacement of the factory sensor. The pressure sensor itself is made up of a stainless steel body and flying leads terminated into an OEM quality connector, allowing for direct plug-and-play installation into supported Subarus.

Features:

• Billet Aluminum Adapter w 1/8" NPT Threads

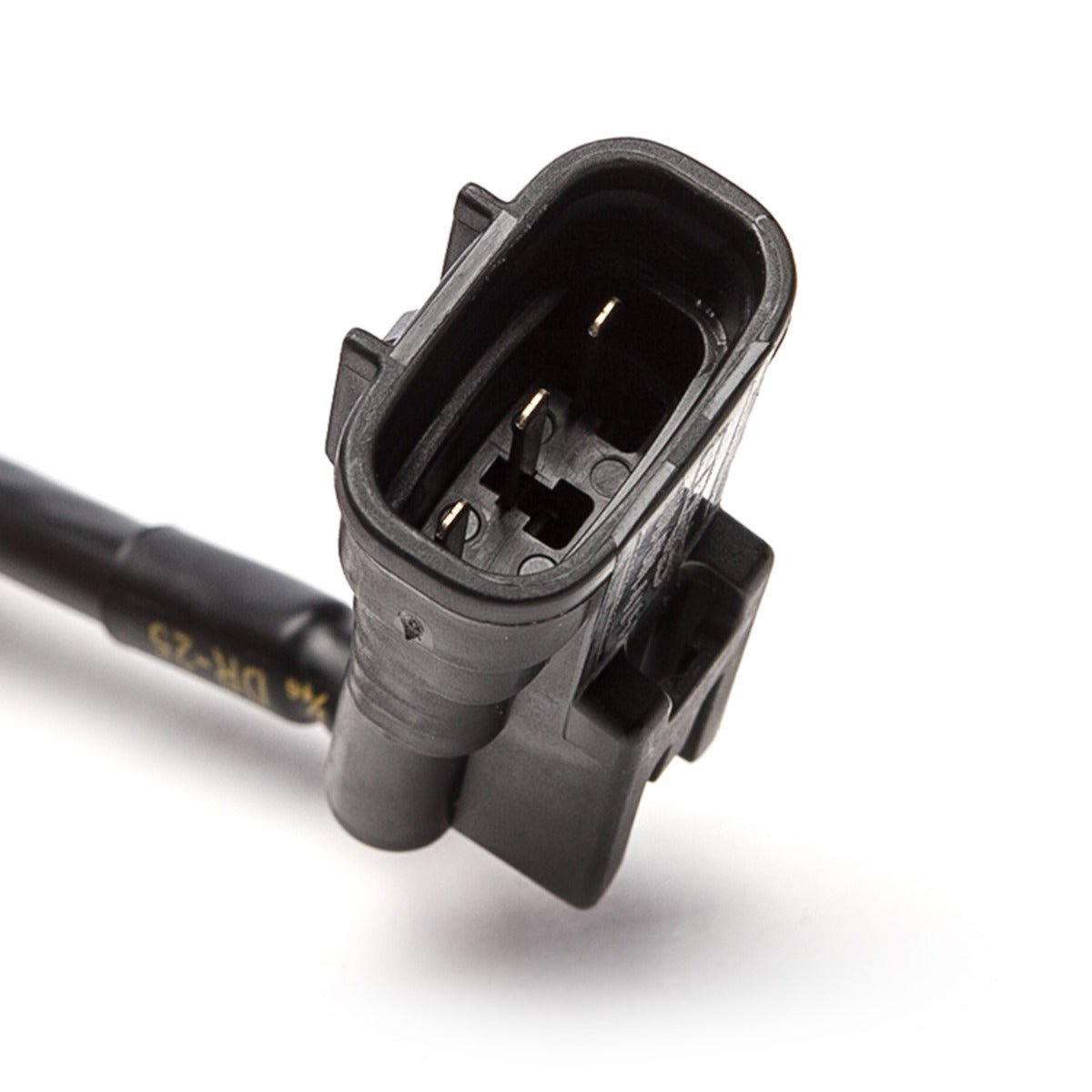

• OEM Quality Plug-and-Play Connector
• Total Error Band <1% Full Scale (+/- 0.6psi)
• <1ms Response Time
• Retains OEM Sensor DTC Detection Capabilities

Installation Instructions
